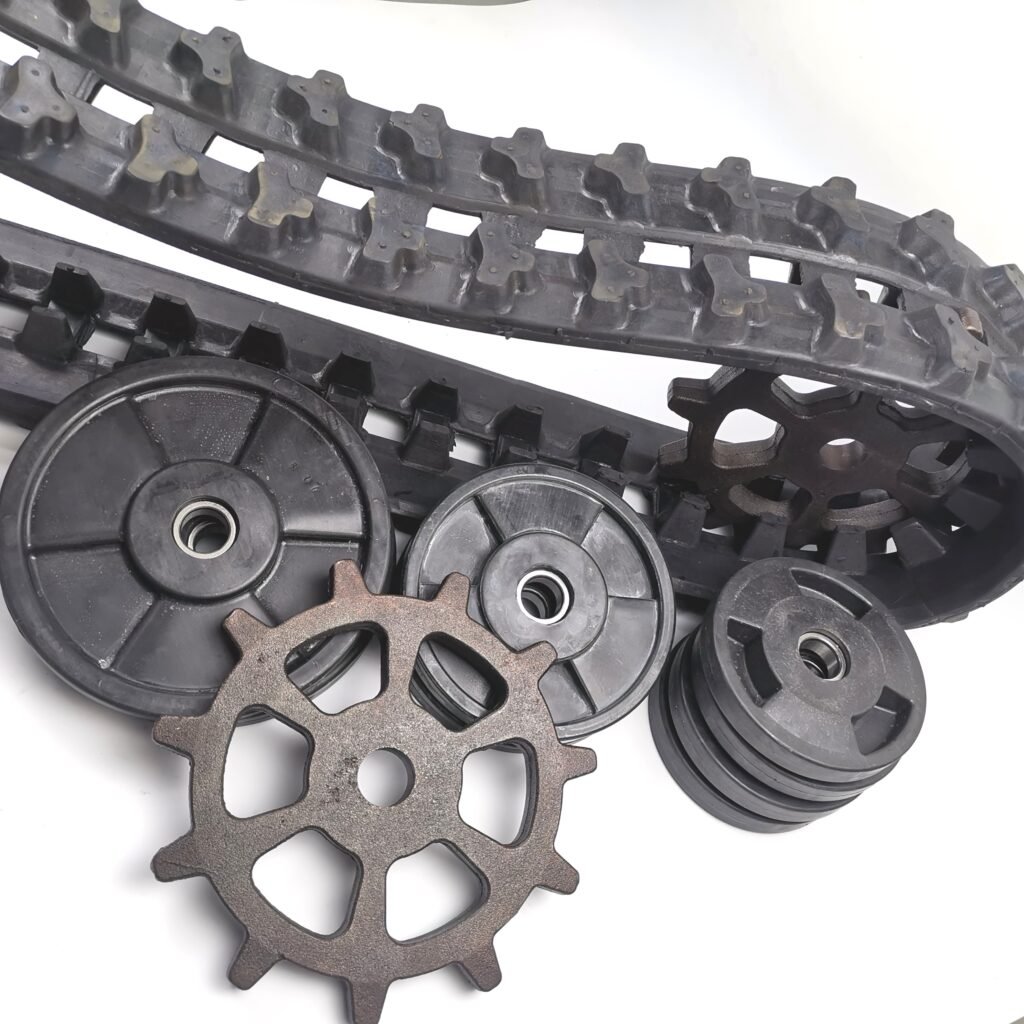

ATV Track 148x60x36

Built to Go Farther

This ATV track features with an outer tread design, high tread height, and a large tread size that can maximize the ground contact area, it’s great for all-terrains.

With built-in high strength kevlar fiber, and high-strength cast steel part as reinforcement, this rubber track has high loading weight – approx.500kg compared with similar size tracks. And it works well on different terrains and has superior off-road performance.

For sprockets and wheels: we opened molds for the matching sprocket and wheels, so the costs for them is greatly decreased. You can take them in low cost comparing with custom sprockets & wheels.

Remark: Only for mechanical equipment that does not exceed a total load of 500kg.

* If you need more info. about this track i.e.: drawing, pls feel free to contact us.

Discover more about ATV Track 148x60x36

  • ATV Track 148x60x36 (thin thickness version)
  • Weight: 13kg
  • Length: 2160mm
    Min links=35
    Cast steel part inside
    Drive sprocket recommend thickness:22mm
    Drive sprocket Dia not less than 190mm
    For robots/vehicle loading weight: approx. 500kg. Pls contact us for fit tracks recommendation.

Custom Matching Sprocket

•  To make best fit of track and sprocket, it’s recommended to let us make the sprocket for you. Just let us know the the sprocket diameter and inner installation hole size you required, we’ll make sprocket drawing for confirmation after order placed.

•  Available custom sprocket material: polymer, aluminum

How To Choose Fit Track

•  Choose from our catalogue with 100+ tracks

•  Ask us for fit tracks recommendation for your application depends on the weight, running speed and working circumstance. Please feel free to ask us for track recommendation.

•  We can customize the track length according to customer’s demand.

Short Delivery

•  Custom rubber track, NO STOCK. Order usually takes 10-15days of production based on different track type and length.

•  There’re many shipping methods for choice, faster shipping (7-10days door to door) like DHL, UPS, FEDEX, TNT, slower shipping by sea or other slower methods. Contact us for shipping cost reference.
